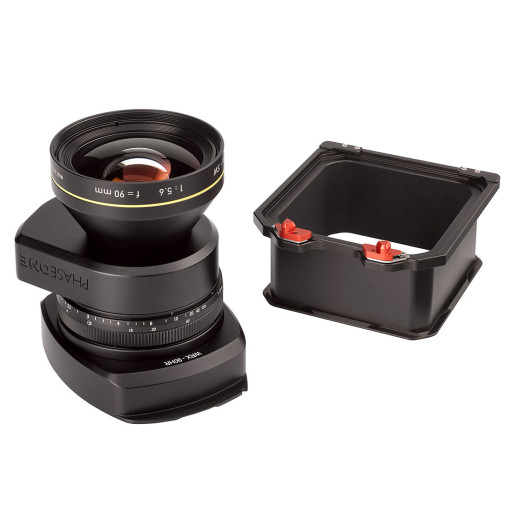

The WRX-90 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5.6/90 HR Digaron-SW lens with Phase One X-Shutter mounted in a helical focussing mount.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.
This combination allows for optimised shift without vignetting from the lensbarrel.
The WRX-90 fits to all Cambo Wide cameras with SLW-adapters.
In case the WRX-90 is being used on a XT body, the rear spacer can be replaced with the front spacer WRS-1049.
Shortest focal distance to object: 1,25 mtr
Image circle of lens at f/11: 120mm
Optical Movements:
CCD size 37x37mm: 38/38mm
CCD size 33x44mm: 39/35mm
CCD size 36x48mm: 37/33mm
CCD size 37x49mm: 36/32mm
CCD size 40x54mm: 33/29mm
CCD size 36x56mm: 35/29mm
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
