Cambo Wide-DS 180HR Digaron-S Long Helical / Short Barrel + Spacer (No Shutter)

WRA-2180



£7852.50

inc. VAT

£6543.75

ex. VAT

£7,852.50 inc.VAT

£6,543.75 ex.VAT

£7,852.50 inc.VAT

£6,543.75 ex.VAT

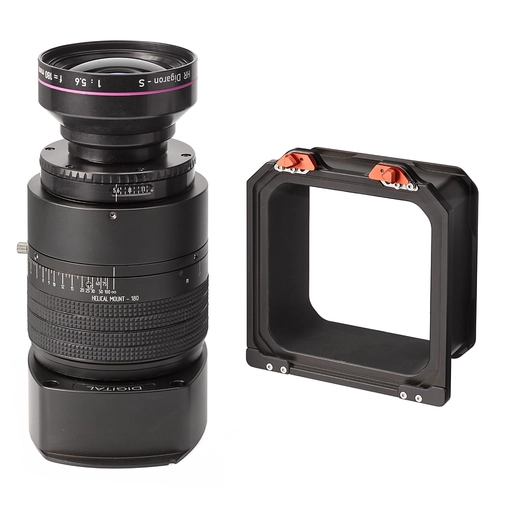

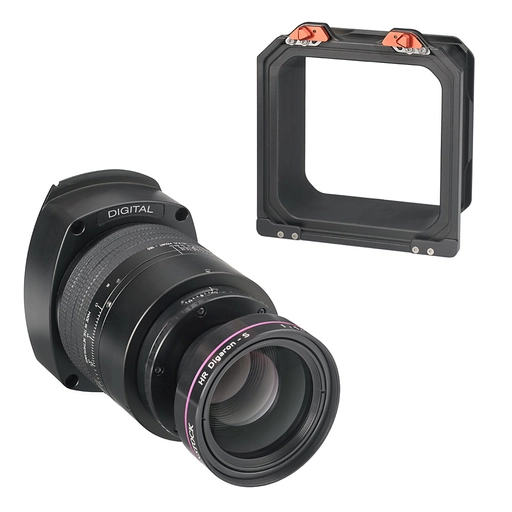

Cambo Wide-DS 180HR Digaron-S Long Helical / Short Barrel + Spacer (No Shutter)

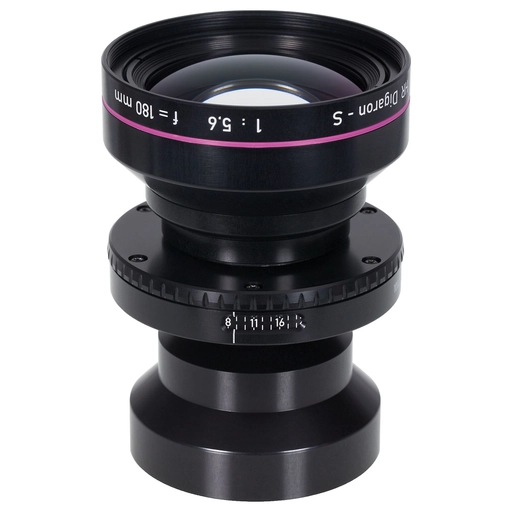

The WRA-2180L Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5,6/180 HR-S Digaron lens with Aperture Only mounted in a helical focussing mount, with 25mm travel.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit (48mm).
This combination allows for more shift before vignetting from the lensbarrel.
The WRA-2180L fits to all Cambo Wide cameras with SLW-adapters.

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
Shortest focal distance to object: approx. 1.7 mtr

Image circle of lens at f/11: 80 mm
Optical Movements:
CCD size 37x37mm: 17/17mm
CCD size 33x44mm: 17/14 mm
CCD size 36x48mm: 14/12 mm
CCD size 37x49mm: 13/11 mm
CCD size 40x54mm:  9 / 8 mm
CCD size 36x56mm:  13/ 7 mm
Please note that some optical movements may be larger than achievable due to mechanical limitation.
