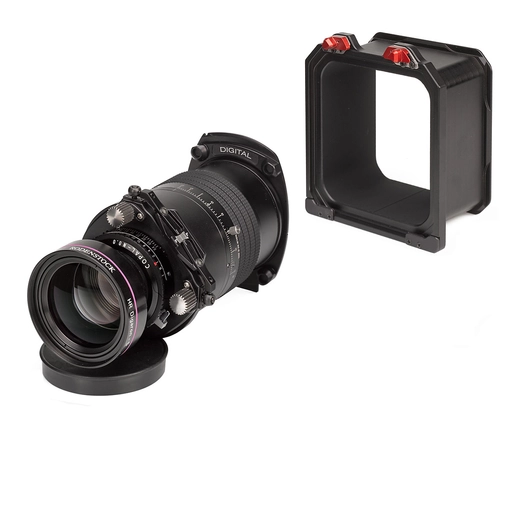

The WTSX-180S Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 6,3/180 HR-S Digaron lens with Phase One X-Shutter mounted in a helical focussing mount, with 25mm travel. This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit (48mm).
This combination allows for more shift before vignetting from the lensbarrel.
The WTSX-180S fits to all Cambo Wide cameras with SLW-adapters.
In case the WTSX-180 is being used on a Phase One XT body, the rear spacer can be replaced with the front spacer WRS-1049.
Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
