Cambo Wide-T/S 90 mm HR-Digaron-SW Short Barrel Lenspanel +Spacer (With Phase One X-Shutter)

WTSX-90



£12924.65

inc. VAT

£10770.54

ex. VAT

£12,924.65 inc.VAT

£10,770.54 ex.VAT

£12,924.65 inc.VAT

£10,770.54 ex.VAT

X-Shutter

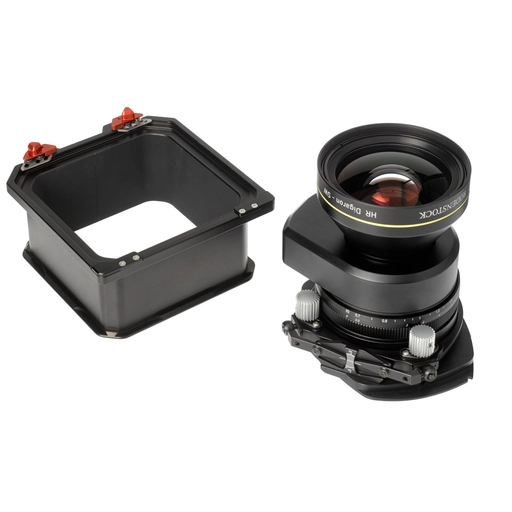

Cambo Wide-T/S  90 mm HR-Digaron-SW Short Barrel Lenspanel +Spacer (With Phase One X-Shutter)

The WTSX-90 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5,6/90 HR-SW Digaron lens with Phase One X-Shutter mounted in a helical focussing mount.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.
This combination allows for optimised shift without vignetting from the lensbarrel.

This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.

The WTSE-890 fits to all Cambo Wide cameras with SLW-adapters.
In case the WRX-90 is being used on a Phase One XT body, the rear spacer can be replaced with the front spacer WRS-1049.

Shortest focal distance to object: 1,25 mtr

Image circle of lens at f/11: 120mm
Optical Movements:
CCD size 37x37mm: 38/38mm
CCD size 33x44mm: 39/35mm
CCD size 36x48mm: 37/33mm
CCD size 37x49mm: 36/32mm
CCD size 40x54mm: 33/29mm
CCD size 36x56mm: 35/29mm
