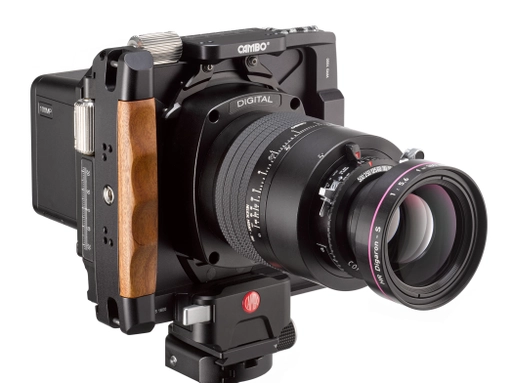

The WRX-180S Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 6,3/180 HR-S Digaron lens with Phase One X-Shutter mounted in a helical focussing mount, with 25mm travel.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit (48mm).
This combination allows for more shift before vignetting from the lensbarrel.
The WRX-180S fits to all Cambo Wide cameras with SLW-adapters.
In case the WRX-180S is being used on a XT body, the rear spacer can be replaced with the front spacer WRS-1049.

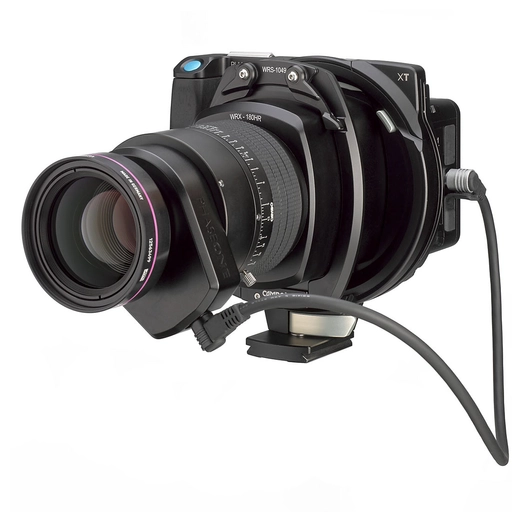

This is shown in the second picture, where the WRX-180S is mounted to a XT-body with the additinal WRS-1049.
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
