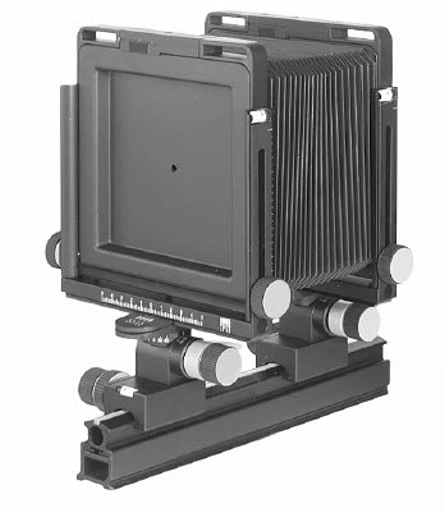

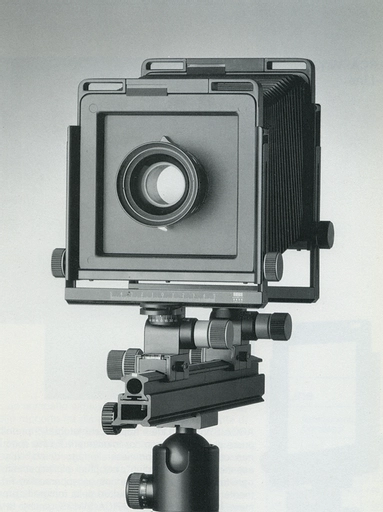

Arca Swiss F-classic 4x5" View Camera
ARCA-SWISS 4x5 inch monorail chamber. All-metal construction. 30cm telescopic optical bench, extendable to 45cm, composed of two sliding monorails on a support, with quick clamping. Standard 38 cm bellows interchangeable with shorter or longer bellows.
Planks 141 x 141 mm.
Front body movements: Vertical offset: 50mm up, 50mm down.
Lateral offset: 50mm to the right or to the left.
Vertical tilt (at the base): 35° backwards, 35° forwards.
Lateral tilt: only limited by the bellows.
Rear body movements: Vertical offset: 50mm up, 50mm down.
Lateral offset: 50mm to the right or to the left.
Vertical tilt (at the base): 35° backwards, 35° forwards.
Lateral tilt: only limited by the bellows.
International back (Graflok) Gridded
frosted sight glass with built-in Fresnel.
