340.00 - 354.00 MHz US FCC / IC
433.42 - 434.42 MHz CE
52 Channels over 26 Frequencies (FCC/IC)
35 Channels over 5 Frequencies (CE)
2.7" (6.9 cm) rubberized with 180 degree swing
Transmit output power:
Less than 0.001 watt (1/1000 of a watt or 1 milliwatt)
Up to 10 to 240 meters (30 to 800 feet) for E-TTL II triggering. Up to 10 to 365 meters (30 to 1200 feet) for basic triggering. Range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference.
Hot Shoe, 1/4-20, lanyard, velcro
Maximum Shooting Rate Frames per second (fps)
TTL Mode: within 1 FPS of camera's maximum FPS
Basic Trigger Mode: Camera Max FPS
* dependent on flash power settings
FPS = Frames Per Second
Power / Channel Switch
OFF - C.2 - C.1
Zone Select Switch
A-B-C (matches Nikon zones)
LED: Green, Amber, Red status indications
Camera / P1 Port
1/8" (3.5 mm) stereo miniphone for 2-stage remote camera triggering. Port Voltage Handling: up to 50 Volts, 100 milliamp continuous
Tip = Trigger
Ring = Pre-Trigger
Sleeve = Ground
Flash / P2 Port
1/8" (3.5 mm) mono miniphone. Port Voltage Handling: up to 200 Volts, 4 amps peak, 250 milliamp continuous, non-polarized
Minimum Receive Contact Time
Camera / P1 Port = 80 milliseconds
Flash / P2 Port = 500us
3.3 VDC (all pins) - safe for all cameras
Hot Shoe voltage protection:
Hot Shoe: up to 50V
USB Compliant 2.0, Mini-B Connector, 5VDC regulated, 100mA, Pin 1 Positive, Pin 4 Ground
Above -15° C (5° F) and below 50° C (120° F).
Storage Temperature (without battery)
Above -30 C (-22 F) and below 85 C (185 F)
High impact plastic, captive battery door
Hot Shoe made of glass reinforced resin
Two (2) AA (IEC:LR6) Alkaline recommended, other chemistries (NiMH, NiCAD, Lithium) allowed, USB
60 + Hours
3.6" (9.2 cm) long x 2.9" (7.3 cm) wide x 1.4" (3.6 cm) tall, antenna lowered
5.4 oz (153 grams) 3.8 oz (108 grams) without batteries
Included in the box

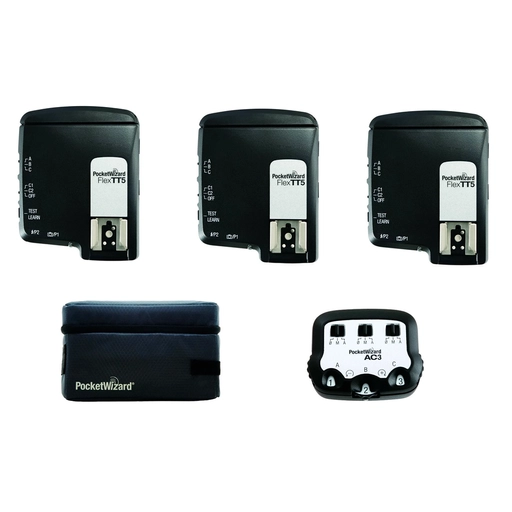

FlexTT5 Transceiver, USB cable, Quick Guide
AC3 Zone Controller
Designed to work seamlessly with Canon’s E-TTL II and Nikon's CLS/i-TTL systems, the AC3 ZoneController removes operating complexity with its easy-to-use design.
Manual Power Control
With three simple dials, you can quickly adjust the power settings for three independent zones in 1/3rd stop increments with a six stop range.
Control up to three zones of light, each with one or more flashes, right from the camera’s position. Set them all on manual, auto, or mix the settings between zones. Need to turn a zone off? Just slide a switch and it’s off.
SpeedCycler with an AC3 ZoneController
Previously only seen with PocketWizard’s MultiMAX radios, this new mode is designed to rapidly cycle through multiple flash units fired individually in sequence. This allows photographers to fire a camera in sync with flashes faster than a single flash unit can recycle. It can also be used for triggering remote cameras sequentially. SpeedCycler is engaged on a transmitting MiniTT1 or FlexTT5 via the PocketWizard Utility.
SpeedCycler mode requires an AC3 ZoneController in the top hot-shoe of the on-camera PocketWizard radio. Zones A, B, and C will be triggered sequentially and individual zones can be disabled by setting the AC3’s Zone Switch to the off position. Both TTL and manual flash controls are supported.
Flash Power Control without a Camera
Photographers can now take their AC3 and transmitting radio off-camera and use it to set power levels for any flash with a ControlTL receiver, making it more convenient to use an optically triggered light meter, or control the power levels with just a MiniTT1/FlexTT5 and AC3 in their hand while another photographer takes the pictures. Previously, an AC3 ZoneController on a MiniTT1 or FlexTT5 needed to be on camera to send manual power levels to remote flashes. Now, when connected to a MiniTT1 or FlexTT5, manual power levels are transmitted to remote flashes when the TEST button is pressed even when the transmitter is off the camera. This affects both speedlights connected to receiving FlexTT5s and larger flashes like AlienBees and Elinchrom RX units with ControlTL receivers.
In Auto Mode, change ISO, aperture, or FEC and the lights automatically adjust their compensating power setting with PocketWizard PowerTracking. Set your AC3 ZoneController to manual and PowerTracking is turned off for absolute manual control. PowerTracking can be customized via the PocketWizard Utility.
Studio Flash Compatibility
When used in conjunction with a PowerST4 Receiver for Elinchrom RX, a FlexTT5 paired with an AC9 AlienBees Adapter or a PowerMC2 for Einstein™ E640 Flash, you have remote power control over Elinchrom RX, AlienBees and White Lightning studio flash. You can also mix these with Canon E-TTL, Nikon CLS/i-TTL or any other PocketWizard triggered flash.
The AC3 weighs almost nothing and slips into the top-shoe of your on-camera MiniTT1 or FlexTT5. There are three dials and three switches, one for each zone.
This switch allows you to set each zone to either Manual Power Control, Auto (PowerTracking, E-TTL II, CLS/i-TTL) or Off. Set it to off and that zone will not fire.
Easy to read dials
Clearly labeled from +3 to -3 in 1/3rd stop increments. In Auto mode, the dials act as flash exposure compensation. In manual mode, +3 on the dial is your flashes maximum power level. Adjust the dial down to control your power in 1/3rd stop increments for up to six stops of control.
Canon E-TTL II, Nikon CLS/i-TTL, Elinchrom RX, AlienBees, White Lightning, Einstein™ E640 Flash
Off, Manual, Auto (PowerTracking, E-TTL II, CLS/i-TTL)
Auto = +/- 3 stops, 1/3 stop increments
LED: Green status indicator
Above -15° C (5° F) and below 50° C (120° F)
Above -30° C (22° F) and below 85° C (185° F)
high impact plastic
No battery required. Minimal power requirements received from the MiniTT1 or FlexTT5.
2" (5cm) wide x 1.7" (4.2 cm) long x .9" (2.1cm) tall
.82 ounces (23.25 grams)
Included in the box:
AC3 ZoneController, Quick Guide
MiniTT1 Transmitter or FlexTT5 Transceiver with firmware version 5.150 (or later) needed as a host.
