Seacam Viewfinder
10 degrees

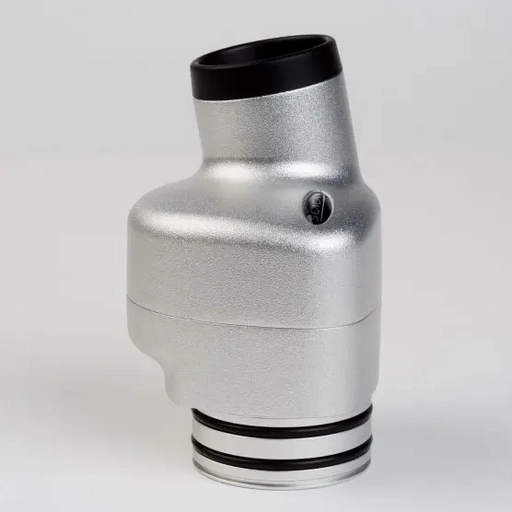

SEACAM S10 Sportsfinder for SEACAM Housing

With the S10 SPORTSFINDER. The 10° viewing angle allows perfect control of the viewfinder image, enables quick action photos and, thanks to the slightly tilted viewing angle, makes shooting objects close to the ground especially easy. To switch from landscape to portrait format, the S10 SPORTSFINDER can also be rotated forward and back by 45° – in and out of the water.

The interface between the photographer and his subject is the camera’s viewfinder. Here, the photographer composes the desired image, assesses and sets the sharpness and receives the most important information about image data. A powerful and super-clear viewfinder is essential for this task.

By default, the eye needs a distance of about 20–25mm from the ocular to be able to assess the entire image. With the diving mask, however, the whole thing becomes a bit trickier, since the mask forces us at a minimum distance of around 30–40 mm, depending on the model. This fact inspired us to compensate for this disadvantage with special sports- and viewfinders. Today, photographers worldwide trust in our viewfinder system and appreciate the high-quality optics and ergonomic handling.

FUNCTION

TECHNICAL DATA

Knobs and control levers
Power switch / LCD light, shutter release for camera and video, main- and sub-command dial, manual focus, zoom, lens release button / AF mode-button, focus mode selector, Fn button, ISO / AF-ON, play, delete, live-view selector.

Dimensions
260 x 210 x 140 mm
without port, viewfinder and handles


Push buttons
Multi selector and middle button, MODE, BKT, metering mode, +/- button, i-button, MENU, protect, + zoom, –index, OK, FN3, QUAL, WB, info, LV live-view.


Weight
2950g
without port, viewfinder and handles, neutral under water depending on port and viewfinder.

Data
Clear LCD monitor window and inclined, glare-free upper display window.
2 flash sockets S6 or N5, 2 flash arm T-pieces 25mm, tripod thread 3/8 ″, M8 thread on the housing top, 2 removable handles and optical-acoustic leak detector.

Remote- or LAN-, Power-, HDMI socket and vacuum test optional
Spare O-ring set, grease and maintenance oil, allen key set and wrist strap in neoprene bag, protective caps and manual.


Operation Depth
- 80m
deeper operation depth upon request.
