Manfrotto Fluid Video Head with 645 Fast Twin Alu Tripod

MVK504XTWINFA



£919.96

inc. VAT

£766.63

ex. VAT

£919.96 inc.VAT

£766.63 ex.VAT

£919.96 inc.VAT

£766.63 ex.VAT

Tripods

Manfrotto Fluid Video Head with 645 Fast Twin Alu Tripod

  • Fluid video head with 4-step counterbalance system up to 6.5 kg
  • Maximum versatility thanks to flat base
  • FAST Lever Lock & 3-angle selection mechanism for easy set up
  • 100 mm half ball, compatible with a 75 mm half ball adapter.
  • Side lock plate attachment and two 3/8'' easy link connectors.

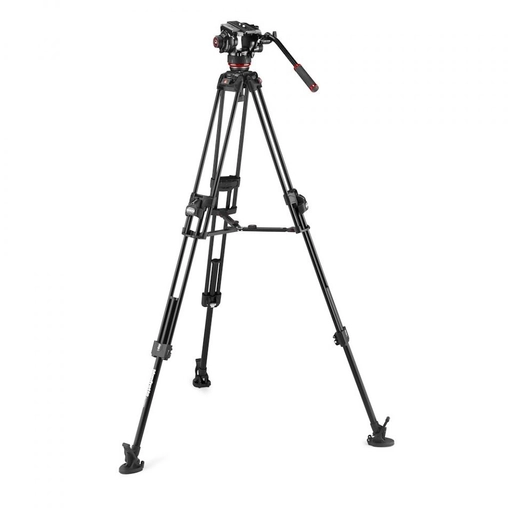

This video system includes the Manfrotto 504X Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The 645 FTT Fast Twin Alu Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The synchronized closure mechanisms between the upper and lower locks enable videographers to control the entire leg with a single lock and get to work in record time.

The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Supplied with its own padded carrying bag.

Weight: 6.2 kg

Top Attachment: 1/4″ screw, 3/8″ screw

Ball Flat: Flat

Safety Payload Weight: 12 kg

Counterbalance System: Variable Steps

Powered By (Batteries): Lithium

Counterbalance Weight: 2.2, 4.4, 6.5 kg

Bubble Spirit Level (No.): 1

Center Of Gravity: 55 mm

Carrying Bag Included: Yes

Center Column: no centre column

Closed Length: 89.5 cm

Colour: Black

Easy Link: Yes

Front Tilt: -70° / +90°

Head Type: Video/Fluid Head

Leg Type: Twin

Leg Lock Type: Flip Lock

Material: Aluminium

Maximum Height: 173 cm

Maximum Working Temperature: 60 °C

Min Height: 43.5 cm

Minimum Working Temperature: -30 °C

Pan Bar Included: Yes

Pan Drag: continuously adjustable from 0 to max level

Panoramic Rotation: 360 °

Plate Type: 504PLONGR-1

Quick Release: Yes

Spreader: mid level - variable arm length

Tilt Drag: continuously adjustable from 0 to max level

Accessory Compatibility: 114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
