Peartree Photo

Nitrotech 612 Fluid Video Head With Continuous CBS

MVH612AH



£620.96

inc. VAT

£517.47

ex. VAT

£620.96 inc.VAT

£517.47 ex.VAT

£620.96 inc.VAT

£517.47 ex.VAT

Video Heads

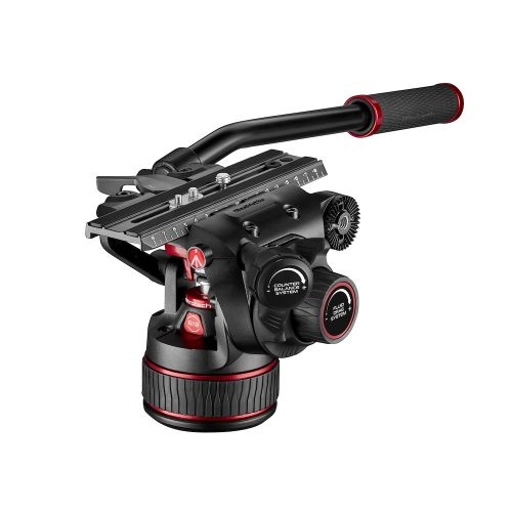

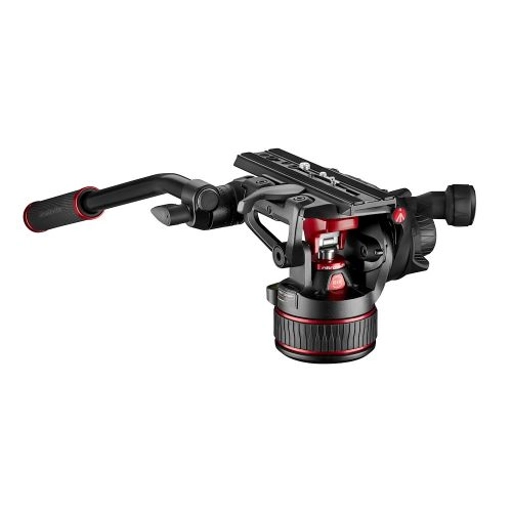

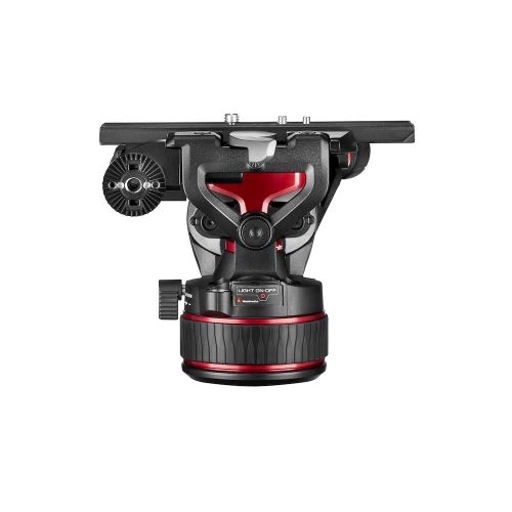

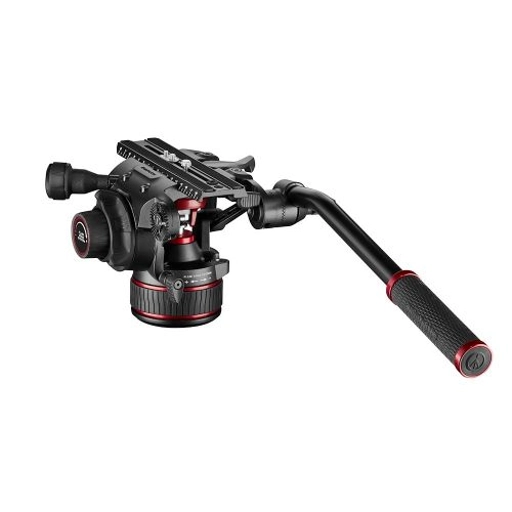

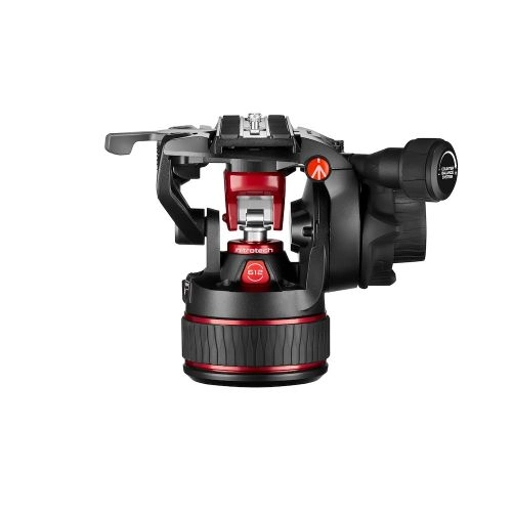

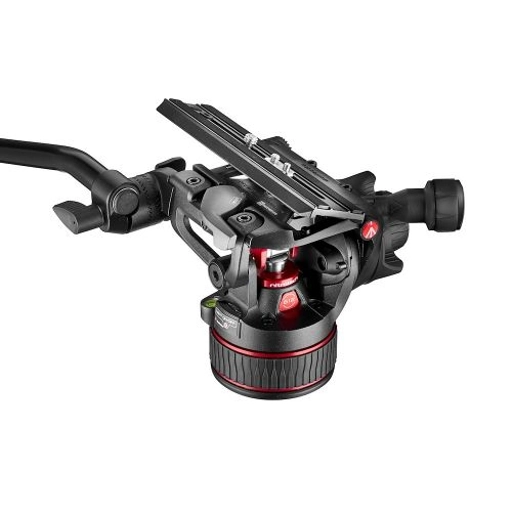

Nitrotech 612 Fluid Video Head With Continuous CBS

  • Nitrotech Fluid Video Head With Continuous CBS

  • Fluid video head with continuous counterbalance system (4-12 Kg)

  • Variable continuous fluid pan & tilt drag system

  • Side lock plate attachment

3/8” easy link connector for accessories, with anti-rotationThe NITROTECH 612 fluid video head features continuous counterbalance system that enables precise control of a camera and accessories from 4 up to 12 Kg at 55mm center of gravity. No matter the camera gear weight you are using you can have constant control despite the tilt degrees you will select. Camera operation will be much easier and effort free!

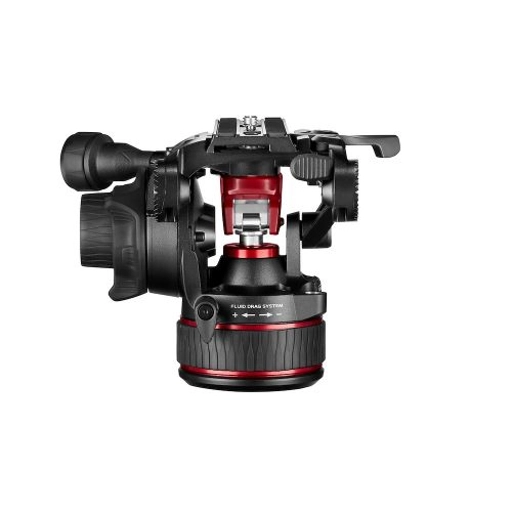

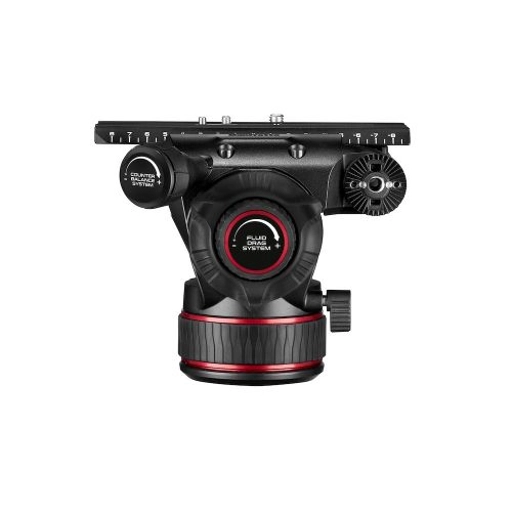

The variable continuous fluid drag system is powered by a brand new fluid technology that with Its formula sets a new level of performance in the Manfrotto range boosting the smoothest and judder-free pan and tilt movements.

The head also features a 3/8” Easy Link equipped with an anti-rotation systems both to accommodate Manfrotto arms equipped with an anti-rotation system or arms equipped with ARRI locating pins in order to enable an external monitor or other accessories to be fitted securely. The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).



Weight

2.27 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Continuous

Powered By (Batteries)

Lithium

Counterbalance Weight

4 → 12 kg

Base Diameter

75 mm

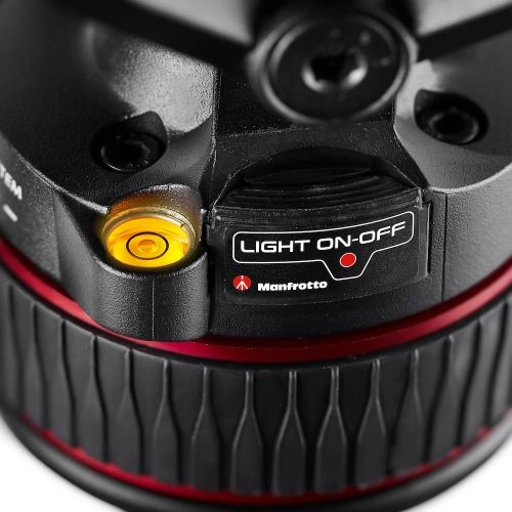

Bubble Spirit Level (No.)

1

Center Of Gravity

55 mm

Certifications

WEEE; RoHS

Colour

Black

Easy Link

Yes

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Material

Aluminium

Maximum Working Temperature

50 °C

Minimum Working Temperature

-20 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGRL

Quick Release

Yes

Tilt Drag

continuously adjustable from 0 to max level

Working Height

15 cm

Accessory Compatibility

MVAPANBARM; MVAPANBARL

This product is currently out of stock. Your item will be shipped when it is back in stock. (Please note some items ship direct from manufacturer so they may be in stock even if this message displays, please get in touch for more info)
