509 Fluid Video Head & 545B Alu Twin Leg Tripod

509HD,545BK



£1556.95

inc. VAT

£1297.46

ex. VAT

£1,556.95 inc.VAT

£1,297.46 ex.VAT

£1,556.95 inc.VAT

£1,297.46 ex.VAT

Tripods

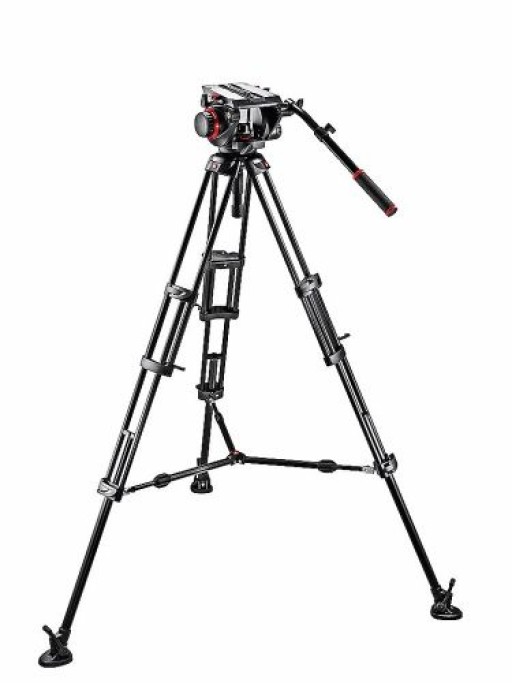

509 Fluid Video Head & 545B Alu Twin Leg Tripod

  • Variable fluid drag system on pan and tilt for smooth movements

  • 4 step counterbalance system

  • Set up quickly with intuitive sliding camera plate and set up

  • Inbuilt Ø100mm levelling half ball

  • Aluminium twin leg tripod with middle spreader

The 509HD,545BK Manfrotto video system includes the 509 Fluid Video Head with incorporated 100mm half ball, the 545B professional aluminium twin leg tripod with middle spreader, and the handy MB MBAG100PNHD tripod bag.

The Manfrotto 509 fluid video head features variable fluid drag system in both pan and tilt which allows smooth movement, a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. And a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.7,5 Kg. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted.
It also features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast.

The 545B aluminium twin leg tripod comes with a 100mm bowl for easy, effortless mounting, and the tripod can be used with various dollies so you can enjoy more shooting freedom. With the telescopic middle-level spreader, you can set your leg angles with even greater precision. The leg locks are also sturdy and secure, supported by durable spiked feet with rubber overshoes. Keep your tripod as stable as possible wherever you ever, from smooth floors to rugged terrain.

Weight

9.841 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

100 Ball

Safety Payload Weight

13.5 kg

Powered By (Batteries)

Lithium

Bubble Spirit Level (No.)

1

Counterbalance Weight

8.5 kg

Center Of Gravity

125 mm

Carrying Bag Included

MB MBAG100PNHD

Center Column

no centre column

Certifications

WEEE; RoHS

Closed Length

84 cm

Colour

Black

Easy Link

Yes

Front Tilt

-60° / +90°

Head Type

Video/Fluid Head

Leg Type

Twin

Leg Angles

from 30° to 66°

Leg Lock Type

Flip Lock

Leg Sections

3

Legs Tube Diameter

16, 25 mm

Material

Aluminium

Maximum Height

168.5 cm

Maximum Working Temperature

60 °C

Min Height

44.5 cm

Minimum Working Temperature

-20 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

509PLONG

Quick Release

Yes

Spreader

mid level - variable arm length

Tilt Drag

continuously adjustable from 0 to max level

Accessory Compatibility

502HLV; 509HLV; 114MV; 181B; 165MV
