Nitrotech N12 video head w/ Twin leg tripod middle spreader

MVKN12TWINM



£1149.95

inc. VAT

£958.29

ex. VAT

£1,149.95 inc.VAT

£958.29 ex.VAT

£1,149.95 inc.VAT

£958.29 ex.VAT

Tripods

Nitrotech N12 video head w/ Twin leg tripod middle spreader

  • Fluid video head with continuous counterbalance system (4-12 Kg)

  • Variable fluid pan & tilt drag system

  • Flat base head dedicated 100mm half ball for levelling

  • Aluminium twin leg tripod for greater rigidity

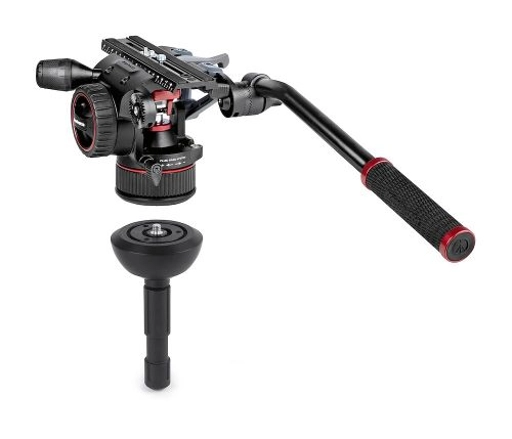

The video system includes the NITROTECH N12 fluid video head (flat base) and the 545B aluminium twin leg with middle spreader tripod.

The NITROTECH N12 fluid video head features state-of-the-art technology consisting in a Nitrogen piston mechanism that allows continuous counterbalance system that enables precise control of a camera and accessories from 4 to 12 Kg @ 55mm C.O.G. .
The variable fluidity function on both pan and tilt allows smooth, judder-free movement.
It also features a 3/8” Easy Link equipped with an anti-rotation function that enables an external monitor or other accessories to be fitted.
The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment.
The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).

The head attaches to the tripod thanks to a 100 mm half ball.

specifically designed to fit the head. The 545B two-stage twin leg tripod is an extremely rigid solution featuring a telescopic middle spreader.
Its leg locks are secure and reliable, and it is equipped with spiked feet with a rubber overshoe for solid grounding on both uneven terrain and smooth floors. The tripod can be used with a variety of Manfrotto dollies.

Supplied with its own padded carrying bag.

Weight

6.25 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Continuous

Powered By (Batteries)

Lithium

Counterbalance Weight

4 → 12 kg

Base Diameter

75 mm

Bubble Spirit Level (No.)

1

Center Of Gravity

55 mm

Carrying Bag Included

yes

Center Column

no centre column

Closed Length

89 cm

Colour

Black

Easy Link

Yes (with antirotation)

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Leg Type

Twin

Leg Lock Type

Flip Lock

Legs Tube Diameter

16, 25 mm

Material

Aluminium

Maximum Height

170 cm

Maximum Working Temperature

50 °C

Min Height

46 cm

Minimum Working Temperature

-15 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGRL

Quick Release

Yes

Spreader

mid level - variable arm length

Tilt Drag

continuously adjustable from 0 to max level

Accessory Compatibility

114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL

This product is currently out of stock. Your item will be shipped when it is back in stock. (Please note some items ship direct from manufacturer so they may be in stock even if this message displays, please get in touch for more info)
