Cambo Wide-RS 23mm HR Digaron-S Lenspanel (No Shutter)

WRA-2023



£8,909.00

ex. VAT

£10,690.80inc. VAT

£8,909.00ex. VAT

Cambo Wide-RS  23mm HR Digaron-S Lenspanel (No Shutter)

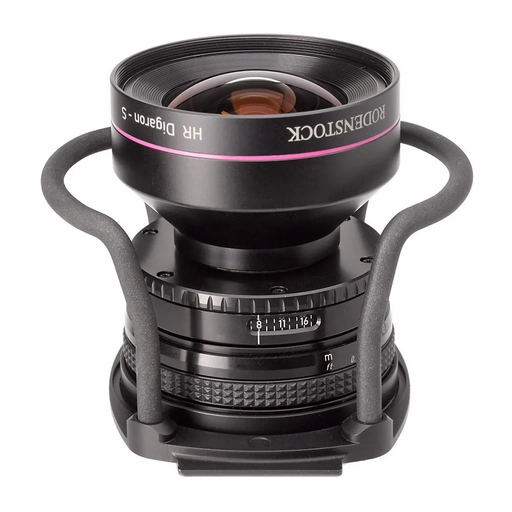

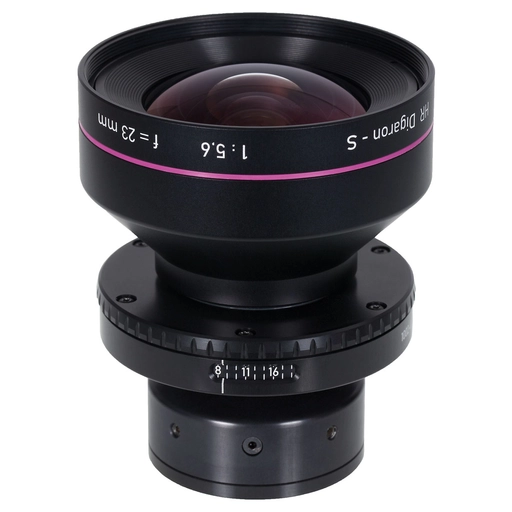

The WRA-2023 Lenspanel is dedicated to the use with Digital Backs with sensor-activated electronic shutter and has a Rodenstock 5,6/23 HR Digaron-S lens with Aperture Only mounted in a helical focussing mount.

Features

Product details

Shortest focus distance to the object

 0,2 mtr

Image circle of lens at f/11

70mm



Optical Movements

CCD size 37x37mm

11/11 mm

CCD size 33x44mm

11/ 9 mm

CCD size 36x48mm

 8/ 6 mm

CCD size 37x49mm

7/ 5 mm

CCD size 40x54mm

2/1 mm

CCD size 56x36mm

3/ 2 mm


Camera Movements

Camera

Up / Down / Left / Right

WDS

34 / 26 / 20 / 20mm

WRS

25 / 15 / 20 / 20mm

1600

20 / 20 / 20 / 20mm

This product is compatible with the PhaseOne XT system / No data transfer

Camera not included in sale.

Shortest focal distance to object: 0,2 mtr

Image circle of lens at f/11: 70mm

Optical Movements:
CCD size 37x37mm:  11/11 mm
CCD size 33x44mm:  11/ 9 mm
CCD size 36x48mm:    8/ 6 mm
CCD size 37x49mm:    7/ 5 mm
CCD size 40x54mm:    2/1 mm
CCD size 56x36mm:    3/ 2 mm

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
