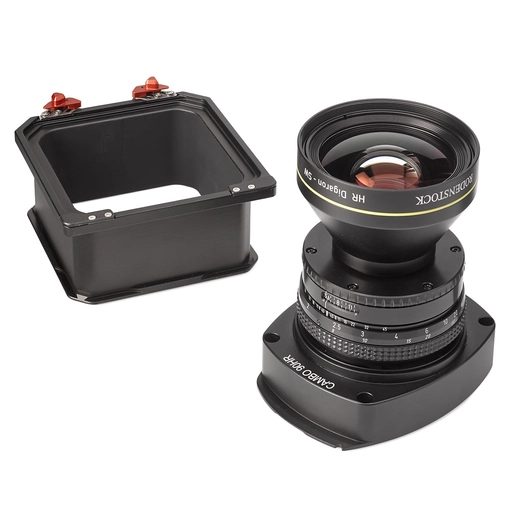

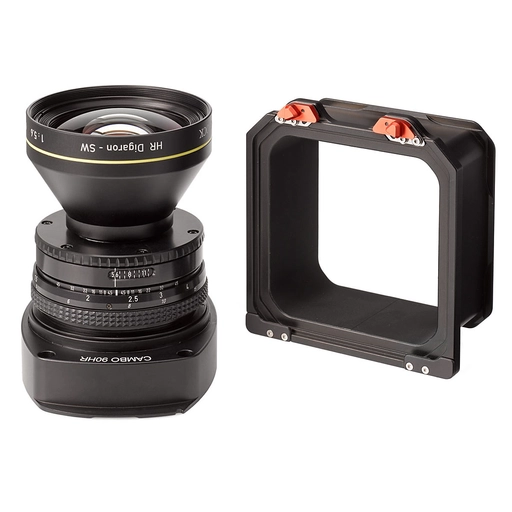

Cambo Wide-RS 90 mm HR Digaron-SW Lenspanel Short Barrel + Spacer (No Shutter)

WRA-2090



£10,023.22

inc. VAT

£8,352.68

ex. VAT

£10,023.22 inc.VAT

£8,352.68 ex.VAT

£10,023.22 inc.VAT

£8,352.68 ex.VAT

Cambo Wide-RS  90 mm HR Digaron-SW Lenspanel Short Barrel + Spacer (No Shutter)

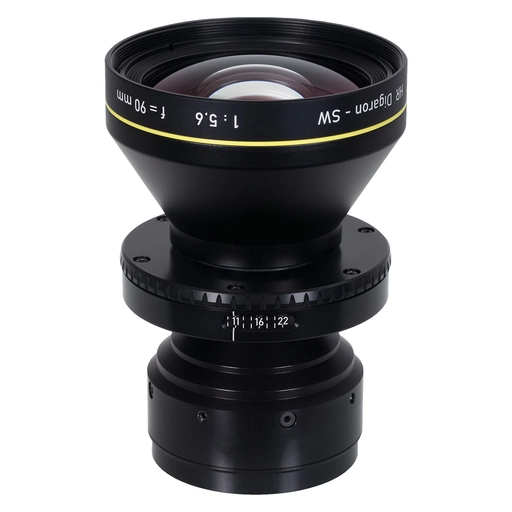

The WRA-2090 Lenspanel is dedicated to the use with Digital Backs with sensor-activated electronic shutter and has a Rodenstock 5.6/90 HR Digaron-SW lens with Aperture Only mounted in a helical focussing mount.

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit. This combination allows for optimised shift without vignetting from the lensbarrel. The WRA-2090 fits to all Cambo Wide cameras with SLW-adapters.

.

Shortest focal distance to object: 1,25 mtr

Image circle of lens at f/11: 120mm

Optical Movements:
CCD size 37x37mm: 38/38mm
CCD size 33x44mm: 39/35mm
CCD size 36x48mm: 37/33mm
CCD size 37x49mm: 36/32mm
CCD size 40x54mm: 33/29mm
CCD size 36x56mm: 35/29mm
Please note that some optical movements are larger than achievable due to mechanical limitation.

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
