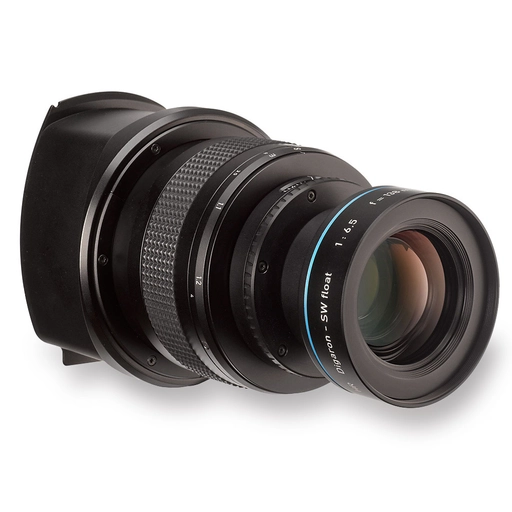

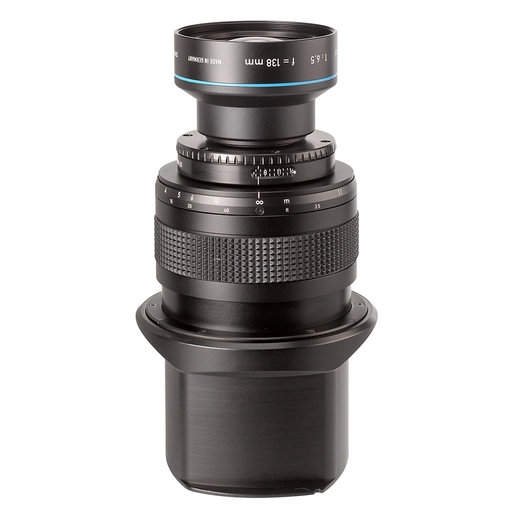

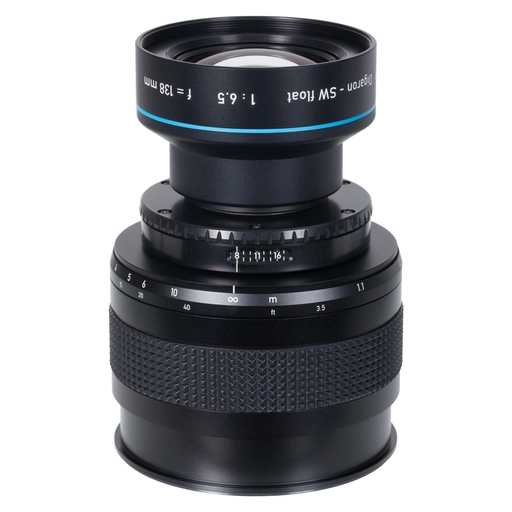

Cambo Wide-RS 138 mm HR Digaron-Float / Long Barrel (No Shutter)

WRA-2138



£13,034.40

inc. VAT

£10,862.00

ex. VAT

£13,034.40 inc.VAT

£10,862.00 ex.VAT

£13,034.40 inc.VAT

£10,862.00 ex.VAT

Cambo Wide-RS 138 mm HR Digaron-Float / Long Barrel (No Shutter)

The WRA-2138 Float Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 6,5/138 HR-Float Digaron lens with Aperture Only mounted in a helical focussing mount, which also drives a floating element for optimal sharpness at any focussed distance.

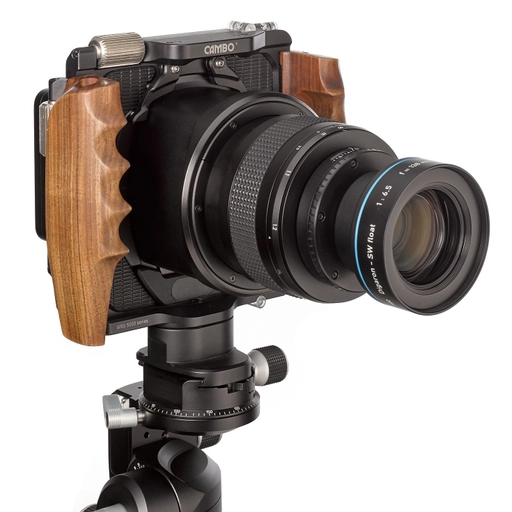

The WRA-2138 fits to all Cambo Wide cameras with SLW-adapters.



Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
Image circle of lens at any f/stop: 110 mm
Optical Movements:
CCD size 37x37mm: 33/33 mm
CCD size 33x44mm: 34/30 mm
CCD size 36x48mm: 30/26 mm
CCD size 37x49mm: 31/27 mm
CCD size 40x54mm:  28/24 mm
CCD size 36x56mm:  29/24 mm
Please note that some optical movements may be larger than achievable due to mechanical limitation.
