Cambo Wide RS-5005 Body incl. double rear shift (25/15 - 22,5/22,5 mm) Ebony Black

WRS-5005



£5034.00

inc. VAT

£4195.00

ex. VAT

£5,034.00 inc.VAT

£4,195.00 ex.VAT

£5,034.00 inc.VAT

£4,195.00 ex.VAT

Ebony
Wide Camera
WRS-5000

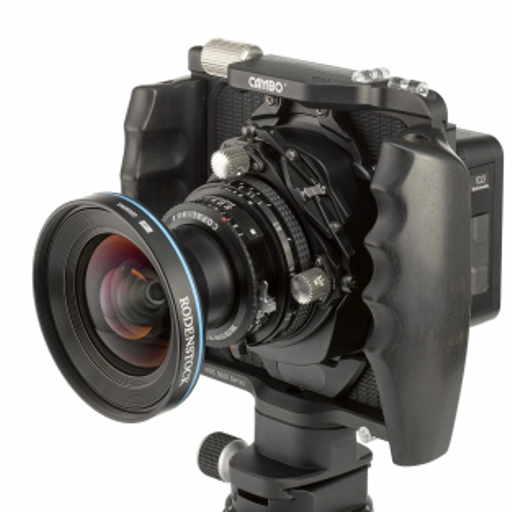

Cambo Wide RS-5005 Body incl. double rear shift (25/15 - 22,5/22,5 mm) Ebony Black

The Cambo WRS-5000 series is the top model of the Wide RS Family, made from high-grade aluminum as used in aerospace technology.

The movements are driven by accelerated spindle gears, operated by XL size stainless steel drive knobs with excellent grip. These precision-geared controls provide architectural photographers with many of the image-placement movements they require while giving digital photographers the ability to create amazing vertical and horizontal panoramic images through stitching several exposures together.
An integrated weight compensation for the digital back equalises the movements for rise and fall to the same effortless feeling.

Additionally, many of the Lenspanels can optionally be acquired with a Tilt-Swing possibility, to add Scheimpflug settings for increased depth of field, in both horizontal as a vertical plane or intentionally selective sharpness where needed.

Like the other Cambo Wide models, the WRS-5005 features interchangeable interfaces for Hasselblad, Leaf, Phase One, and Sinar digital backs. Mounts are available for Hasselblad V, Hasselblad-H, PhaseOne/Mamiya 645AF, and Contax 645AF compatible camera backs.

In order to accomplish nearly any architectural or landscape assignment, the Wide RS accepts the full range of WDS lens panels that incorporate the Schneider Digitar and Rodenstock Digital lenses. Choose from focal lengths ranging from 23mm up to 150mm and more on request.

Exterior
High grade aluminium body in black anodised finish
Wooden handgrips with interchangeable cable release
Choice of Palissander (5000) and Ebony (5005) wood
Stainless steel XL drive knobs for shifts and rise / fall

Features
Weight compensation mechanism for vertical movement
Fully compatible with Cambo’s WRS system
Lightweight only 1.2 kgs (excl. lens)
Stitching possibilities (2-way / 4-way)
Millimetre scales for movements
Movement indicators on the rear sides
Removable cable release included
Removable 3/8" tripod mount (25 mm)
5 spirit levels visible from top or bottom
Accessory mount for 2 point fixed accessories
Additional LED light included

Optional Accessories
Optional WTS Tilt-Swing Lens panels
Optional Viewfinder
Optional Levelling Base with Accessory mount
Broad range of optics
Retrofitting of user lenses offered

Technical Details

Size

190x175 mm (WxH) incl. handgrips and  tripod mount

Weight camera only (excl. lens)

1.2 Kg

Horizontal shift

45 mm (22.5mm left/ 22.5 mm right)

Vertical shift

40mm (25mm/15mm)



Register for an extended warranty
Register on Cambo's website now to receive your extended 2-year warranty.

Lens and digital back  not included
