Cambo Wide-TS 180HR Digaron-S Long Helical / Short Barrel + Spacer (No Shutter)

WTSA-180L



£8961.43

inc. VAT

£7467.86

ex. VAT

£8,961.43 inc.VAT

£7,467.86 ex.VAT

£8,961.43 inc.VAT

£7,467.86 ex.VAT

Aperture Stop

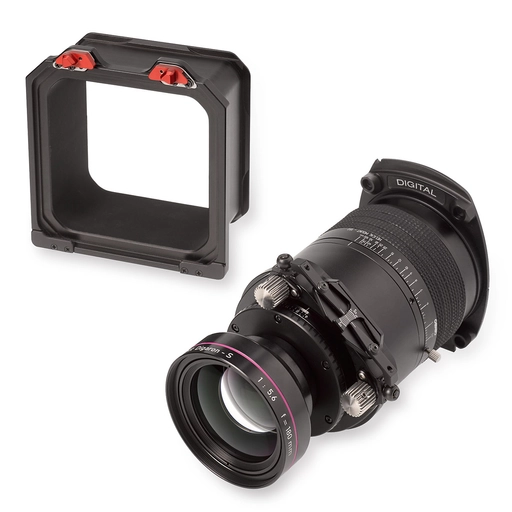

Cambo Wide-TS 180HR Digaron-S Long Helical / Short Barrel + Spacer (No Shutter)

The WTSA-180L Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5,6/180 HR-S Digaron lens with Aperture Only mounted in a helical focussing mount, with 25mm travel. This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.
This version has a split back focal length, existing of a shorter lensplate and a rear extension unit (48mm).
This combination allows for more shift before vignetting from the lensbarrel.
The WTSA-180L fits to all Cambo Wide cameras with SLW-adapters.

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
