Cambo Wide-T/S 32 mm HR Digaron-W Lenspanel (No Shutter)

WTSA-832



£10,095.60

inc. VAT

£8,413.00

ex. VAT

£10,095.60 inc.VAT

£8,413.00 ex.VAT

£10,095.60 inc.VAT

£8,413.00 ex.VAT

Aperture Stop

Cambo Wide-T/S  32 mm HR Digaron-W Lenspanel (No Shutter)

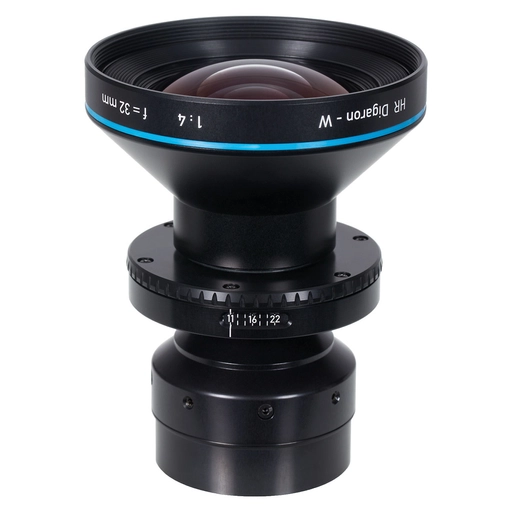

The WRA-2032 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 4,0/32 HR Digaron-W lens with Aperture Only mounted in a helical focussing mount.
Shortest focal distance to object: 0,3 mtr

Image circle of lens at f/8: 90mm
Optical Movements:
CCD size 37x37mm: 23/23mm
CCD size 33x44mm: 23/20mm
CCD size 36x48mm: 20/17mm
CCD size 37x49mm: 19/17mm
CCD size 40x54mm: 16/13mm
CCD size 36x56mm: 17/13mm

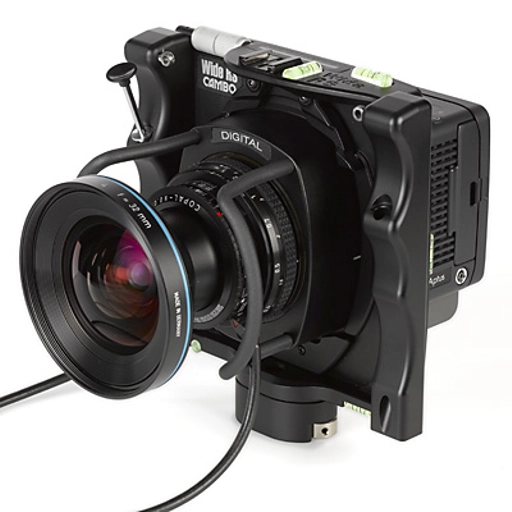

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
