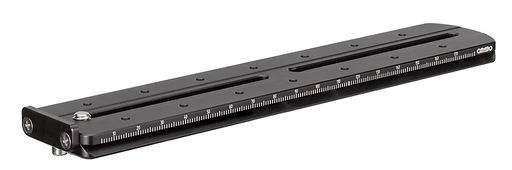

QR-XL plate 1/4" for PCH, PCF, and CBH-6 Heads (ARCA compatible)
QR-XL plate fits the PCH, PCF, and CBH-6 Heads and has an ARCA compatible dovetail with a 1/4" camera mount.
This QR-XL plate is a long plate with 2 slots for custom mounting of cameras to the PCH-series or CBH-6 heads.
Its use is dual purpose. It allows for setting the center of gravity above the center of the gear head or ball head for perfect balance, especially with longer and larger lenses.
Secondly, this plate allows you to find the ideal (nodal point) center of the lens to be placed above the rotation point for spherical or round-shot captures.

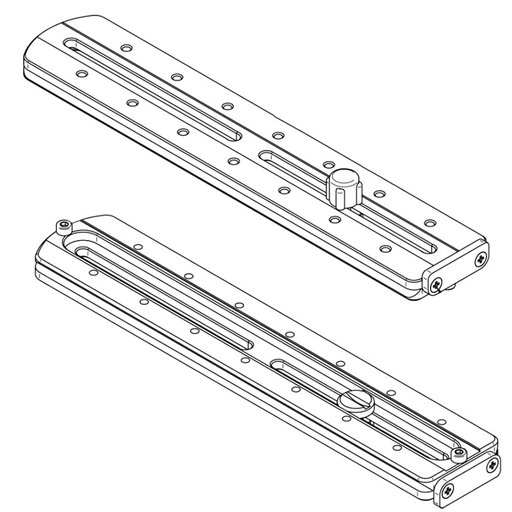

Key Features:
QR dovetail plate with laser engraved mm scale (180mm)
1/4” screw cap
Endplate
Front safety stop
1/4" camera screw
Back safety stop
Technical Specifications:
length: 203 mm
fitting: Arca compatible
weight: 134 gram
2 slots: each 80mm
repositionable end stop
camera fitting: 1/4"
Fitting to:
PCF
PCH
PCM
CBH-6
QR-6
Third-party heads that host Arca compatible plates

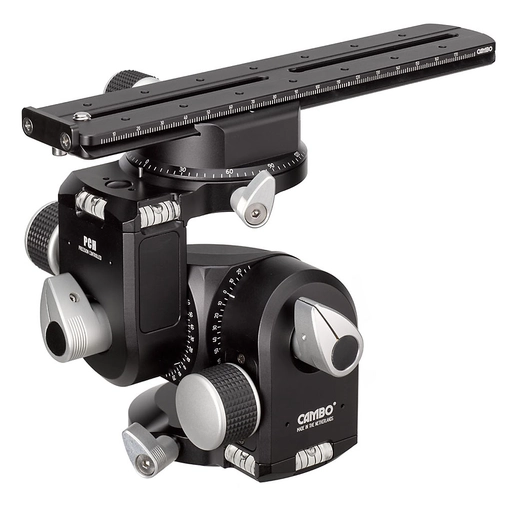

*Cambo PCH head not included
