Cambo Precision Controlled Geared Head incl. 1/4"QR -7 plate




inc. VAT


ex. VAT




Actus Accessory: Geared Head

Cambo Precision Controlled Geared Head incl. 1/4"QR-7 plate

Cambo's NEW tripod head with amazing flexibility. It can tilt, swing, rotate as if it were a ball head, and it has precision gears for fine-tuned tilt and swing. The geared movements are self-locking and available in any position of the head. The bottom, as well as the top, can rotate 360*. After leveling, the top rotation can be used for panoramic shooting.

The PCF features a quick-release top and includes a QR-7 1/4" plate. Cambo's QR plate includes a safety lock that prevents your camera to turn loose on the mount.

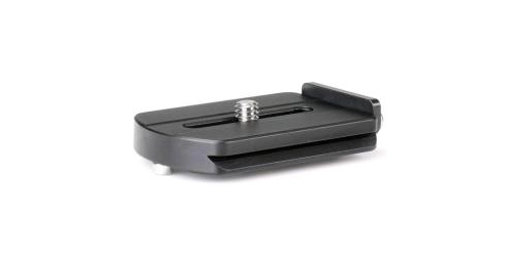

QR-7 plate fits PCH, CBH-6 QR, and QR-6 and has an ARCAcompatible dovetail with a 1/4" camera mount.

If you have a camera with an ARCA style mount, you can use it directly on the PCH. This includes the Cambo ACTUS and Cambo WRS-series.

Register for an extended warranty

Registeron Cambo's website now to receive your extended 2 year warranty.

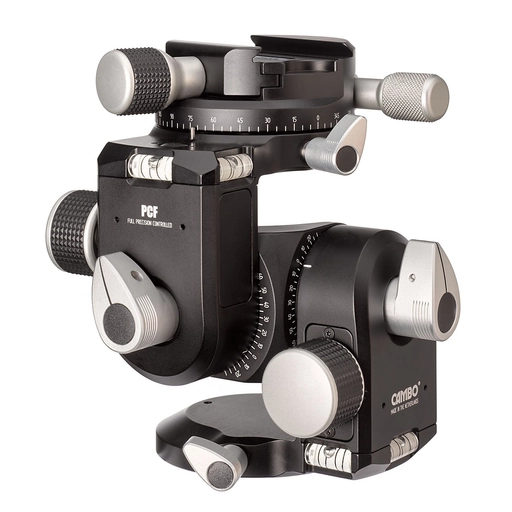

Key Features PCF

Position click indication every 90º at the top and bottom plate
140º X-axis tilt (30º backwards 110º forward)
Separate manual (fast) or geared (fine) movement around the X-axis
140º Y-axis pivot (30º backwards 110º forward)
Separate manual (fast) or geared (fine) movement around the Y-axis
360º Z-axis geared panning at the top plate
360º manual panning at the top and bottom plate
X-, Y- and Z-axis rotate over the same point
When X-, Y- and Z-axis locking knobs are open the PCF can move freely like a normal spherical head.
Adjustable geared friction
Adjustable manual friction
Arca compatible QR clamp
4 large spirit levels
Durable stainless steel 3/8’’ and 1/4’’ tripod mounting options.

Size and weight:

height: 130 mm (incl. plate)
width:  110 mm
depth:  102 mm
weight: 1250 gram (excl. plate)
weight: 1300 gram (incl. plate)
