Cambo Lensplate with Cambo 24mm WA Lens (black finish)

Cambo Lensplate with Cambo 24mm WA Lens (black finish)

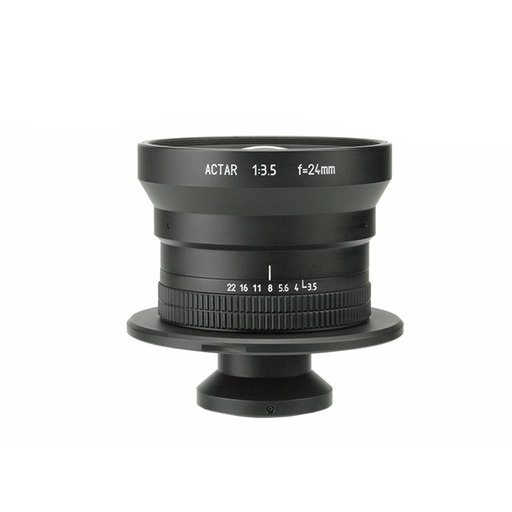

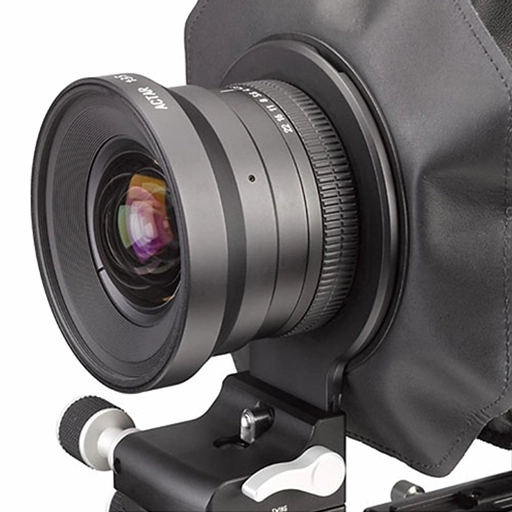

The ACTAR-24 is a lens dedicated to the Cambo Actus in combination with a DSLR or mirrorless camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 24mm. This makes it an ideal companion for landscape and architectural photographers. With a relatively lightweight and a modest size it is easy to carry with you to location shootings.

The ACTAR-24 is a lens with almost no geometrical distortion. As the image circle is 60mm, there is an optically allowed horizontal shift possible of 10mm each side when using a full-frame (24x36) sensor in landscape mode, and 12mm in portrait mode. When using a smaller APS-C sensor the shift possibilities grow to 15mm and 17mm. Of course, vertical shifts have the same possible numbers in reverse order.
The optical design of this lens is a 16 element in 11 groups, of which all lenses are multicoated to achieve the best contrast. The aperture range is from f/3,5 to f/22 in half-stop increments.

Please note that the aperture is manual and there are no electronic connections available nor needed.
