Cambo ACMV-DB KIT ACTUS-MV Camerabody + ACDB-989 SLW-mount + ACDB-254

ACMV-DB Kit



£4,877.95

inc. VAT

£4,064.96

ex. VAT

£4,877.95 inc.VAT

£4,064.96 ex.VAT

£4,877.95 inc.VAT

£4,064.96 ex.VAT

ACTUS-MV

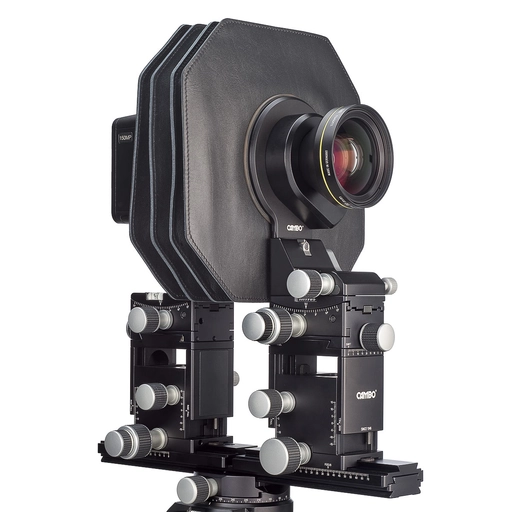

Cambo ACMV-DB KIT ACTUS-MV Camerabody + ACDB-989 SLW-mount + ACDB-254

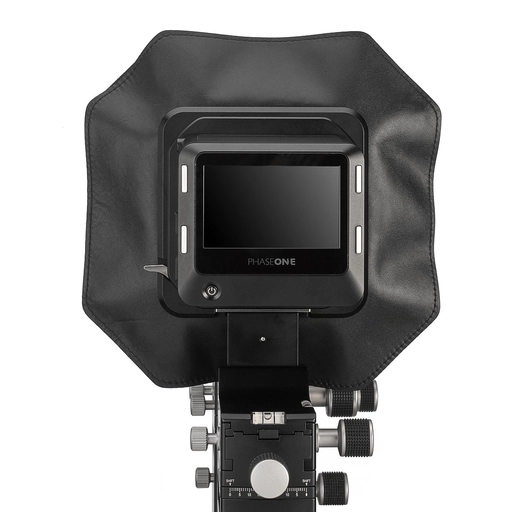

The Actus-MV base is supplied with the universal ACDB-989 interchangeable adapter holder and ACDB-254 bellows. The set-up for use with digital backs. ACDB-989 accepts the well-known Cambo SLW adapters which are available for virtually every digital back. Including legacy models.

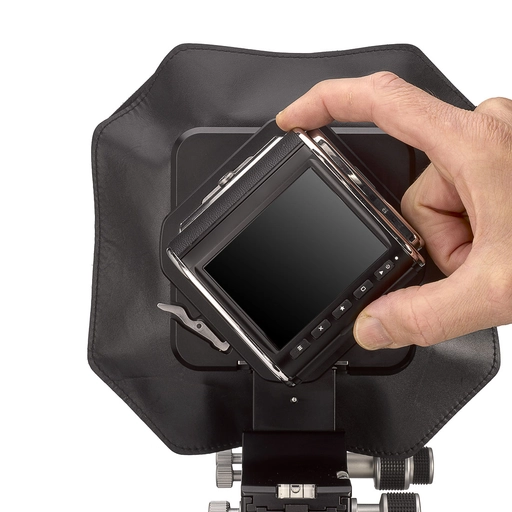

A specific SLW-Adapter plate needs to be acquired to facilitate the mounting of a digital back.

Contents of the KIT:

  • ACTUS-MV Base
  • ACDB-254  Bellows
  • ACMV-989  Holder for SLW-Adapter


Note: Lenses are optional and not part of this kit.
Digital Backs not included

Cambo ACTUS-MV Specifications
  • Tilt                15º / 15º  front and rear
  • Swing        30º / 30º  front
  • Rise/Fall        15mm/15mm front and rear
  • Side Shift        20mm/20mm front and rear
  • Weight        2.8 kg (frames included)
  • Max. extension (standard rail and bellows)
  •                 298mm (2x 70mm geared / 158mm telescopic)
    Note: Max. extension is measured from lens mount to bayonet mount.
    Note: The distance from Bayonet to Sensor is different for each camera model series and can be added to the max. extension

This product is currently out of stock. Your item will be shipped when it is back in stock. (Please note some items ship direct from manufacturer so they may be in stock even if this message displays, please get in touch for more info)
