Peartree Photo

Cambo Interchangeable Bayonet kit incl. GFX100 bayonet (for Actus-XL)

ACXL-967



£605.35

inc. VAT

£504.46

ex. VAT

£605.35 inc.VAT

£504.46 ex.VAT

£605.35 inc.VAT

£504.46 ex.VAT

Cambo Interchangeable Bayonet kit incl. GFX100 bayonet (for Actus-XL)

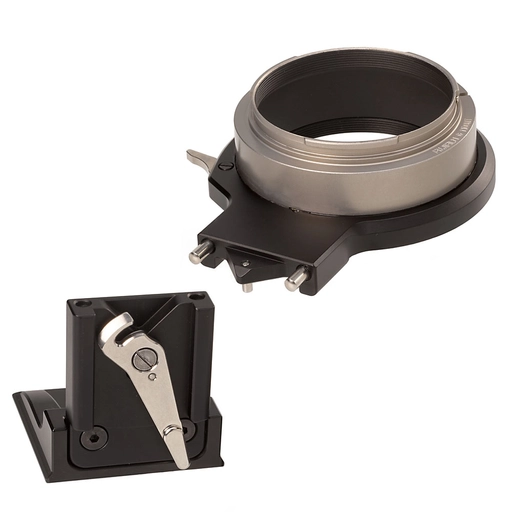

This AC-967 Bayonet Holder is an optional accessory for the ACTUS-XLseries and allows the mounting of a FUJIFILM GFX100 mirrorless camera body to the interchangeable top part of the rear standard of the ACTUS-XL base.

The bayonet holder with the Fujifilm GFX-100 bayonet is placed on long distance from the optics to allow room for the increased body dimensions of the GFX-100 body.
Because of that, there may be limitations with some optics. The Actar-60 is known not to focus at infinity anymore with this particular interface kit.

Alternatively, the GFX-100 can be mounted to the existing AC-792 kit unchanged, although only in portrait mode without rotation to landscape.

Cambo ACB-967 Specifications

This adapter includes a built-in rotation between landscape and portrait position.

Bayonet: Fujifilm GFX

Internal Rotation:
90 degrees between Landscape and Portrait
Raiser block front standard
30mm high, included with the kit (+ longer screws)

*Fuji GX100, Actus Body and Lens not included


Register for an extended warranty

Register on Cambo's website now to receive your extended 2 year warranty.

ACXL-967 is a rear frame including rotating bayonet dedicated to host the Fujifilm GFX-100

Due to the larger size of the GFX-100 compared to the GFX-50, the ACXL-967 stands higher and needs 12.5mm more space backwards.

This product is currently out of stock. Your item will be shipped when it is back in stock. (Please note some items ship direct from manufacturer so they may be in stock even if this message displays, please get in touch for more info)
