Cambo AC-377 Focus Stacking Rail for Actus view cameras

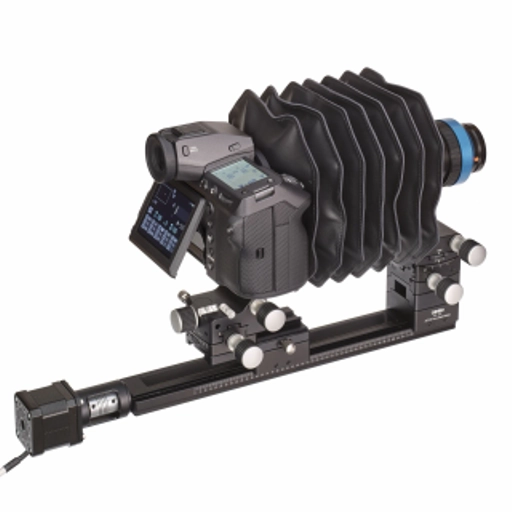

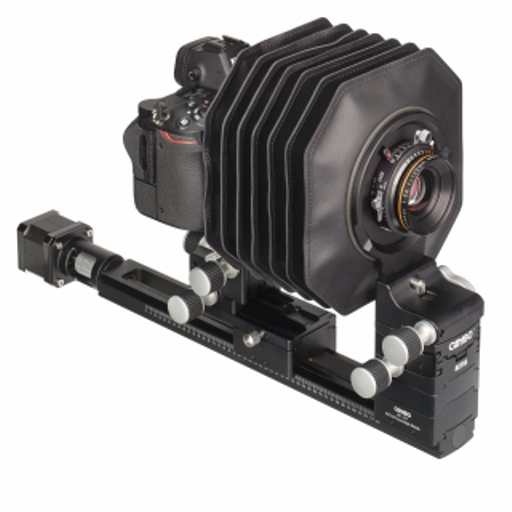

Make a motorised stacking camera out of your Actus. AC-377 enables the use of a Cognisys* or similar stepper motor* to use the Actus for focus stacking.

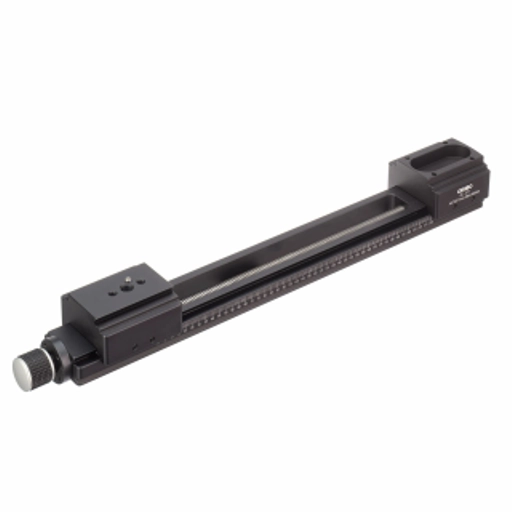

Create images that are sharp from front to back, regardless of the size of the object. The perfect way to explore the world of macro photography.  The AC-377 has a precise micrometric rail. Combined with a stepper motor this enables the photographer to focus the camera in extremely small increments. Repeatable and dependable.

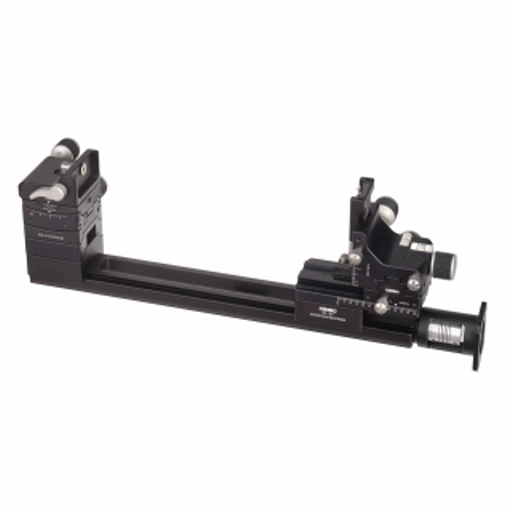

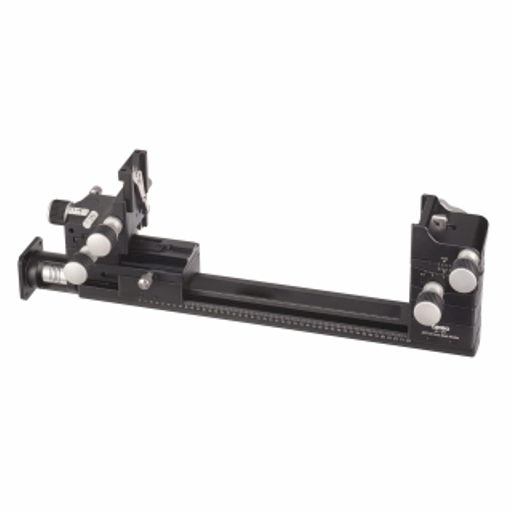

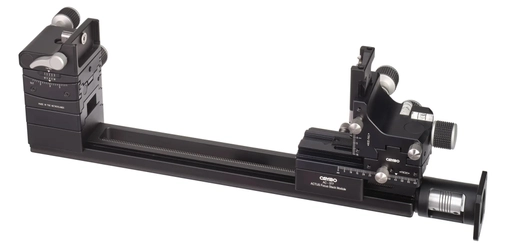

The AC-377 is easily combined with the Actus mini view camera you already own. The conversion is reversible at any time.

Specification

  • Length 419mm
  • Focus travel 220mm
  • Weight 800g
  • One spindle revolution equals 1,5mm of travel
  • Laser-engraved scale on rail
  • Compatible with Actus-B, Actus-G and Actus-DB2
  • Stepper motor, controller and trigger cable required. Photos show Cognisys components
  • Rail compatible with Arca-type quick releases

*Note: The stepper motor is a 3rd party's product and is not included.

This is for the rail only. You'll need to either buy or already own a Cambo Actus B, G or DB camera.
