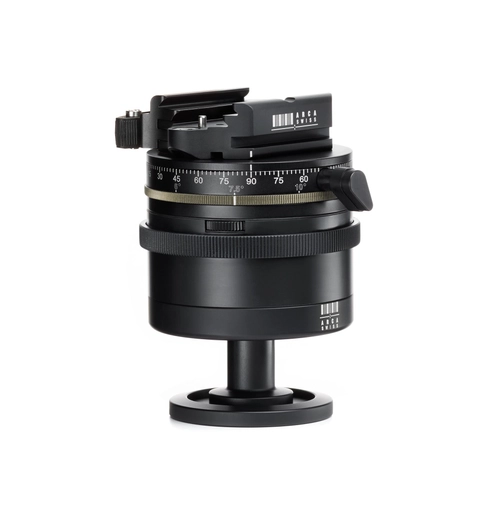

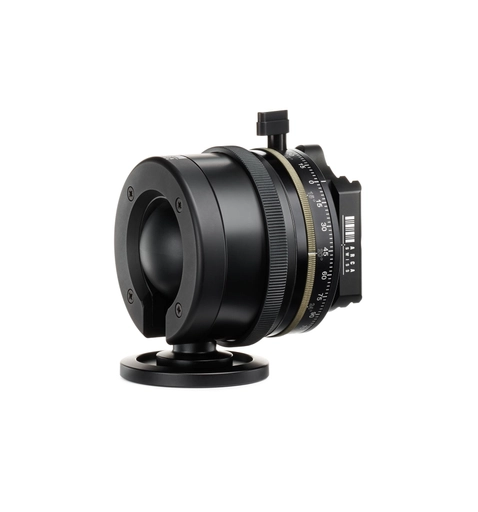

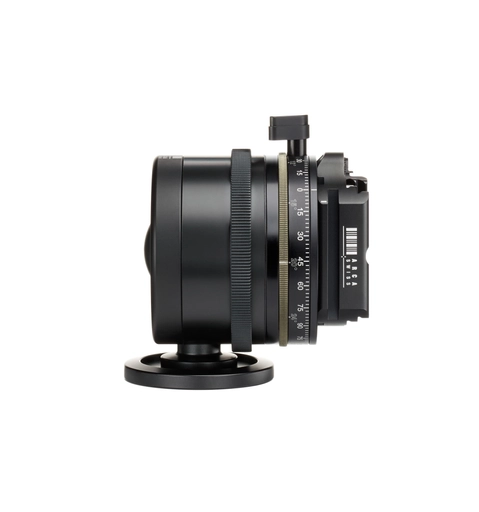

ARCA-SWISS monoball® p1+ cp (clicPan®) monoball®Fix
clicPan® heads can be used in free movement mode for simple shots, and its easily-activated step by-
step mode, when the nodal point is set, allows a series of shots to be taken at precise, pre-defined
angular steps to facilitate the post-production assembly of images.
Leveling of the camera is performed directly on the head: little need to bother with the tripod—a great
advantage, especially on uneven ground. Once leveled, the clicPan® panning bases allow near-perfect
horizontal rotation of the camera.
Ergonomy and ease of use
The desired angular steps are set using a rotating ring which offers 10 different rotational steps of 40°,
30°, 24°, 20°, 15°, 12°, 10°, 7.5°, and 6°, plus an off position for 360° free movement.
When panning the camera, the clicPan® stops with an audible click at each angular step. This
physical and audible feedback eases rapid operation—for example when taking a series of shots
Finesse, lightness, and stability
The clicPan® panning base adds only 60g and barely 10mm extra thickness when compared to a
standard head yet enables a progression from simple to panoramic photography using the same tripod
