Arca Swiss L75 Leveler with MonoballFix Device

860111



£800.00

inc. VAT

£666.67

ex. VAT

If product is showing as not in stock then please be aware that your product will be made to order at Arca Swiss, current delivery times are between 3-4 weeks from order.

Core75Leveler

Information

Type: Core75Leveler

Arca Swiss L75 Leveler with MonoballFix Device

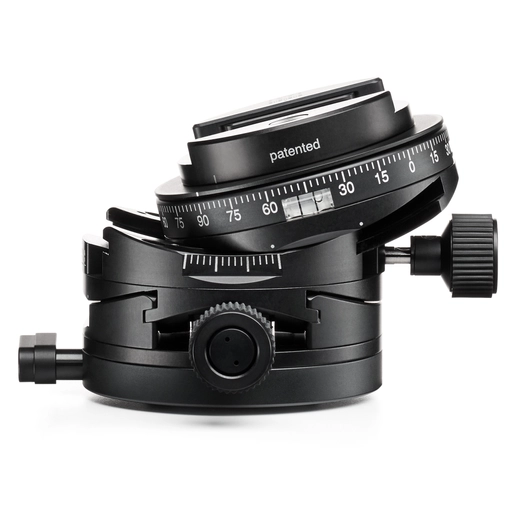

The ARCA-SWISS Core 75 leveler tripod head with MonoballFix Device is characterized by its high precision, simple handling and setup, all perfect for quickly leveling the camera. In addition to base and top panning mechanisms, the Core 75 leveler is equipped with micro-metric movements of +/- 15 ° each in the X and Y axes.

Fluid and precise movements are provided by two gear driven micro-metric self-locking controlknobs. A telescopic feature of the control knobs provides efficient handling of the Core 75 leveler when larger cameras are mounted or full movement is applied.
As with the ARCA-SWISS Cube, the Core 75 leveler movements work within an arc, keeping the camera centered over the tripod.

The Core 75 leveler, like all tripod heads from ARCA-SWISS, is available with a choice of quick release: Classic, flipLock®, and monoball®Fix. The Classic and flipLock®  systems are equipped with a double dovetail so that you can fit the classic camera plates in the upper dovetail and the monoball®Fix to the bottom. The Fix system is compatible with the monoball®Fix plates. All three of them are compatible with the monorails of the ARCA-SWISS cameras.

Type:MonoballFix

Height x Length x Body Diameter:69x97x75

Height (Without quick release):58mm

Weight: 590g

Adapter for tripod:3/8 thread (with adapter screw #809011 also 1/4 possible)

Panorama: 2 (1x under fine gear, 1x over fine gear)

Max Carry Capacity: 30kg

This product is currently out of stock. Your item will be shipped when it is back in stock. (Please note some items ship direct from manufacturer so they may be in stock even if this message displays, please get in touch for more info)
